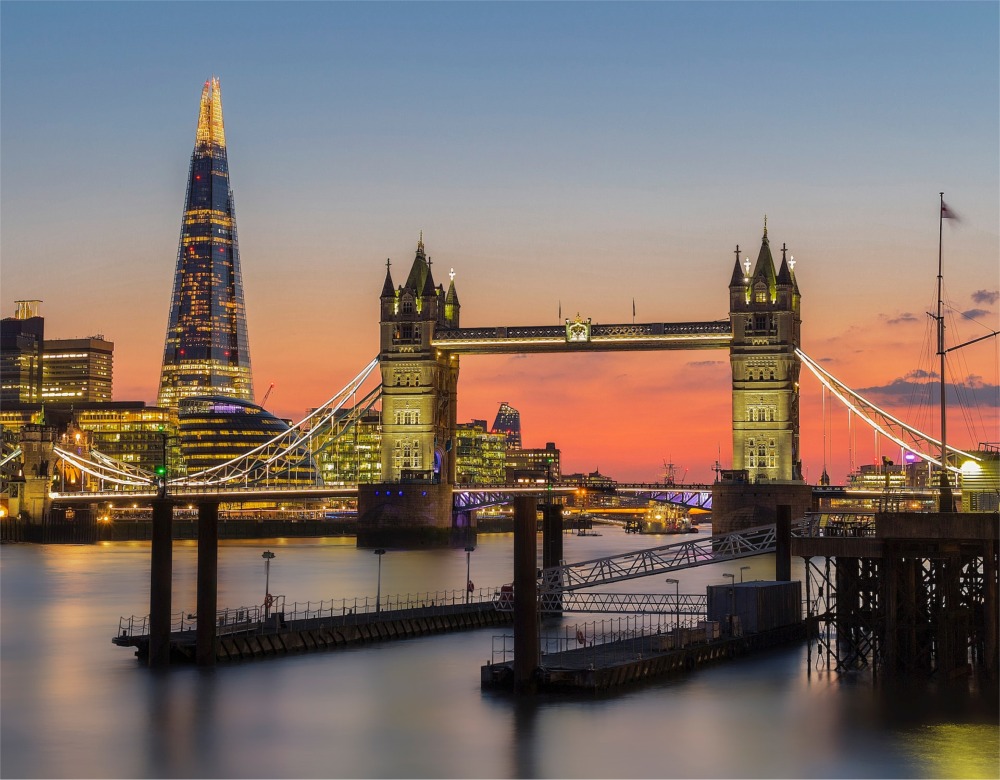

I don't think you will find a better image of this scene. I would have to say congratulations to David Monaghan for this excellent photograph. The colour and illumination are spectacular and the sunset is breathtaking. The Tower Bridge, the City Hall (Southwark), the Shard, and the HMS Belfast are beautifully captured in this wonderful piece of photography.

Cith Hall (Southwark) | The Shard

Tower Bridge

Tower Bridge is a Grade I listed combined bascule and suspension bridge in London, built between 1886 and 1894, designed by Horace Jones and engineered by John Wolfe Barry with the help of Henry Marc Brunel. It crosses the River Thames close to the Tower of London and is one of five London bridges owned and maintained by the Bridge House Estates, a charitable trust founded in 1282. The bridge was constructed to give better access to the East End of London, which had expanded its commercial potential in the 19th century. The bridge was opened by Edward, Prince of Wales and Alexandra, Princess of Wales in 1894.

The bridge is 800 feet (240 m) in length and consists of two 213-foot (65 m) bridge towers connected at the upper level by two horizontal walkways, and a central pair of bascules that can open to allow shipping. Originally hydraulically powered, the operating mechanism was converted to an electro-hydraulic system in 1972. The bridge is part of the A100 London Inner Ring Road and thus the boundary of the London congestion charge zone, and remains an important traffic route with 40,000 crossings every day. The bridge deck is freely accessible to both vehicles and pedestrians, whereas the bridge's twin towers, high-level walkways and Victorian engine rooms form part of the Tower Bridge Exhibition.

Tower Bridge has become a recognisable London landmark. It is sometimes confused with London Bridge, about 0.5 miles (800 m) upstream, which has led to a persistent urban legend about an American purchasing the wrong bridge.

History

Inception

In the late 19th century, commercial development in the East End of London increased, leading to demand for a new river crossing downstream of London Bridge. A traditional fixed bridge at street level could not be built because it would cut off access by sailing ships to the port facilities in the Pool of London between London Bridge and the Tower of London.

A Special Bridge or Subway Committee chaired by Sir Albert Joseph Altman was formed in 1877 to find a solution. More than fifty designs were submitted, including one from civil engineer Sir Joseph Bazalgette, which was rejected because of a lack of sufficient headroom. A design was not approved until 1884 when it was decided to build a bascule bridge. Sir John Wolfe Barry was appointed engineer and Sir Horace Jones the architect (who was also one of the judges). An Act of Parliament authorising construction was passed in 1885. It specified that the opening span would provide a clear width of 200 feet (61 m) and a headroom of 135 feet (41 m). The design had to be in a Gothic style. Construction was funded by the Bridge House Estates, a charity established in 1282 for the maintenance of London Bridge that subsequently expanded to cover Tower Bridge, Blackfriars Bridge, Southwark Bridge, and the Millennium Bridge.

Barry designed a bridge with two bridge towers built on piers. The central span was split into two equal bascules or leaves, which could be raised to allow river traffic to pass. The two side spans were suspension bridges, with rods anchored both at the abutments and through rods contained in the bridge's upper walkways.

Construction

Construction started in 1886, with the foundation stone laid by the Prince of Wales on 21 June, and took eight years. Major contractors included Sir John Jackson (foundations), Armstrong, Mitchell, and Company (hydraulics), William Webster, and Sir William Arrol & Co. 432 people worked on the site; E W Crutwell was the resident engineer for the construction.

Two piers, containing over 70,000 long tons (78,400 short tons; 71,123 t) of concrete, were sunk into the riverbed to support the construction. More than 11,000 long tons (12,320 short tons; 11,177 t) of steel were used in the framework for the towers and walkways, which were then clad in Cornish granite and Portland stone to protect the underlying steelwork.

Jones died in 1887, and George D. Stevenson took over the project. Stevenson replaced Jones's original brick façade with the more ornate Victorian Gothic style, which made the bridge a distinctive landmark and was intended to harmonise the bridge with the nearby Tower of London. The total cost of construction was £1,184,000 (equivalent to £143 million in 2021).

Opening

Tower Bridge was officially opened on 30 June 1894 by the Prince and Princess of Wales. The opening ceremony was attended by Lord Chamberlain, Lord Carrington, and the Home Secretary, H. H. Asquith. An Act of Parliament stipulated that a tug boat should be on station to assist vessels in danger when crossing the bridge, a requirement that remained in place until the 1960s.

The bridge connected Iron Gate, on the north bank of the river, with Horselydown Lane, on the south — now known as Tower Bridge Approach and Tower Bridge Road, respectively. Until the bridge was opened, the Tower Subway — 0.25 mi (400 m) to the west — was the shortest way to cross the river from Tower Hill to Tooley Street in Southwark. Opened in 1870, Tower Subway was among the world's earliest underground ("tube") railways, but it closed after just three months and was reopened as a tolled pedestrian foot tunnel. Once Tower Bridge was open, the majority of foot traffic transferred to using the bridge, as there was no toll to cross. Having lost most of its income, the tunnel was closed in 1898.

The high-level open-air walkways between the towers gained a reputation for prostitutes and pickpockets. Since they were only accessible by stairs, the walkways were seldom used by regular pedestrians and were closed in 1910. The walkway reopened in 1982 as part of the Tower Bridge Exhibition.

20th century

During the Second World War, Tower Bridge was seen as a major transport link to the Port of London and consequently was a target for enemy action. In 1940, the high-level span took a direct hit, severing the hydraulic mechanism and taking the bridge out of action. In April 1941, a parachute mine exploded close to the bridge, causing serious damage to the bascule, towers, and engine room. In 1942, a third engine was installed in case the existing ones were damaged by enemy action. It was a 150 hp horizontal cross-compound engine, built by Vickers Armstrong Ltd. at their Elswick works in Newcastle upon Tyne. It was fitted with a flywheel having a 9-foot (2.7 m) diameter and weighing 9 tons and was governed to a speed of 30 rpm. The engine became redundant when the rest of the system was modernised in 1974 and was donated to the Forncett Industrial Steam Museum by the City of London Corporation.

The southern section of the bridge, in the London Borough of Southwark, was Grade I listed on 6 December 1949. The remainder of the bridge, in the London Borough of Tower Hamlets, was listed on 27 September 1973. In 1974, the original operating mechanism was largely replaced by a new electro-hydraulic drive system, designed by BHA Cromwell House, with the original final pinions driven by modern hydraulic motors.

In 1982, the Tower Bridge Exhibition opened, housed in the bridge's twin towers, the long-closed high-level walkways, and the Victorian engine rooms. The latter still houses the original steam engines and some of the original hydraulic machinery.

21st century

The bridge closed for a month in 2000 to repair the bascules and perform other maintenance. A computer system was installed to remotely control the raising and lowering of the bascules. However, the system proved unreliable, resulting in the bridge being stuck in the open or closed positions on several occasions during 2005 until its sensors were replaced.

In April 2008, authorities announced that the bridge would undergo a £4 million refurbishment that would take four years to complete. The work entailed stripping existing paint down to bare metal and repainting in blue and white. Before this, the bridge's colour scheme dated from 1977, when it was painted red, white, and blue for Queen Elizabeth II's Silver Jubilee. Its colours were subsequently restored to blue and white. Each section was enshrouded in scaffolding and plastic sheeting to prevent the old paint from falling into the Thames and causing pollution. Starting in mid-2008, contractors worked on a quarter of the bridge at a time to minimise disruption, but some road closures were inevitable. The completed work should stand for 25 years. The renovation of the walkway interior was completed in mid-2009. The renovation of the four suspension chains was completed in March 2010 using a state-of-the-art coating system requiring up to six different layers of paint. A lighting system based on RGB LED luminaires was installed, concealed within the bridge superstructure, and attached without drilling holes, owing to the bridge's Grade I listing.

On 8 July 2012, as part of the London Olympics, the west walkway was transformed into a 200-foot-long (61 m) Live Music Sculpture by the British composer Samuel Bordoli. 30 classical musicians were arranged along the length of the bridge 138 feet (42 m) above the Thames behind the Olympic rings. The sound travelled backward and forwards along the walkway, echoing the structure of the bridge.

Following the Olympics, the rings were removed from Tower Bridge and replaced by the emblem of the Paralympic Games for the 2012 Summer Paralympics.

In 2016, Tower Bridge was closed to all road traffic from 1 October to 30 December. This was to allow structural maintenance work to take place on the timber decking, lifting mechanism, and waterproofing of the brick arches on the bridge's approaches. During this, the bridge was still open to waterborne traffic. It was open to pedestrians for all but three weekends when free ferry service was in operation.

Design

Structure

The bridge is 800 feet (240 m) in length with two towers each 213 feet (65 m) high, built on piers. The central span of 200 feet (61 m) between the towers is split into two equal bascules, or leaves, which can be raised to an angle of 86 degrees to allow river traffic to pass. The bascules, weighing over 1,000 tons each, are counterbalanced to minimise the force required and allow raising in five minutes.

The two side spans are suspension bridges, each 270 feet (82 m) long, with the suspension rods anchored both at the abutments and through rods contained within the bridge's upper walkways. The pedestrian walkways are 143 feet (44 m) above the river at high tide and are accessed by lifts and staircases.

One of the chimneys on the bridge connects to an old fireplace in a guardroom of the Tower of London. It is long-disused.

Hydraulic system

The original raising mechanism was powered by pressurised water stored in several hydraulic accumulators. The system was designed and installed by Hamilton Owen Rendel while working for Armstrong, Mitchell, and Company of Newcastle upon Tyne. Water at a pressure of 750 psi (5.2 MPa) was pumped into the accumulators by a pair of stationary steam engines. Each drove a force pump from its piston tail rod. The accumulators each comprise a 20-inch (51 cm) ram which sits a very heavy weight to maintain the desired pressure.

The entire hydraulic system along with the gas lighting system was installed by William Sugg & Co Ltd. The gas lighting was initially by open-flame burners within the lanterns but was soon updated to the later incandescent system.

In 1974, the original operating mechanism was largely replaced by a new electro-hydraulic drive system, designed by BHA Cromwell House. The only remaining parts of the old system are the final pinions, which fit into the racks on the bascules and were driven by hydraulic motors and gearing. Oil is now used in place of water as the new hydraulic fluid.

Signalling and control

Originally, river traffic passing beneath the bridge was required to follow several rules and signals. Daytime control was provided by red semaphore signals, mounted on small control cabins on either end of both of the bridge piers. At night, coloured lights were used, in either direction, on both of the piers: two red lights to show that the bridge was closed, and two green to show that it was open. In foggy weather, a gong was sounded as well.

Vessels passing through the bridge were required to display signals. By day, a black ball at least 2 feet (0.61 m) in diameter was mounted high up where it could be seen. Night passage called for two red lights in the same position. Foggy weather required repeated blasts from the ship's steam whistle. If a black ball was suspended from the middle of each walkway (or a red light at night) this indicated that the bridge could not be opened. These signals were repeated about 1,000 yards (910 m) downstream, at Cherry Garden Pier, where boats needing to pass through the bridge had to hoist their signals/lights and sound their horn, as appropriate, to alert the Bridge Master.

Some of the control mechanism for the signalling equipment has been preserved and is housed in the Tower Bridge's museum.

Traffic

Road

Tower Bridge is still a busy crossing of the Thames, used by more than 40,000 people (motorists, cyclists, and pedestrians) every day. The bridge is on the London Inner Ring Road, and is on the eastern boundary of the London congestion charge zone (drivers do not incur the charge by crossing the bridge).

To maintain the integrity of the structure, the City of London Corporation has imposed a 20-mile-per-hour (32 km/h) speed restriction, and an 18-tonne (20-short-ton) weight limit on vehicles using the bridge. A camera system measures the speed of traffic crossing the bridge, using a number plate recognition system to send fixed penalty charges to speeding drivers.

A second system monitors other vehicle parameters. Induction loops and piezoelectric sensors are used to measure the weight, the height of the chassis above ground level, and the number of axles of each vehicle, with drivers of overweight vehicles also receiving fixed penalty notices.

Pedestrian

From the outset, the high-level connection was a pedestrian route and was intended to allow pedestrian movement to continue while the bridge was open. This was closed in 1910 due to growing crime in this hidden area but was reopened in 1982 when a glass floor was also installed.

River

The bascules are raised about a thousand times a year. River traffic is now much reduced, but it still takes priority over road traffic. Today, 24 hours notice is required before opening the bridge, and opening times are published in advance on the bridge's website; there is no charge for vessels to open the bridge.

Proximity to Underground

The nearest London Underground tube stations to Tower Bridge are Tower Hill on the Circle and District lines, London Bridge on the Jubilee and Northern lines, and Bermondsey on the Jubilee line, and the nearest Docklands Light Railway station is Tower Gateway. The nearest National Rail stations are Fenchurch Street and London Bridge.

Cycling

Transport for London has proposed Cycle Superhighway 4 to run across Tower Bridge.

Exhibition

The Tower Bridge Exhibition is a display housed in the bridge's twin towers, the high-level walkways, and the Victorian engine rooms. It uses films, photos, and interactive displays to explain why and how Tower Bridge was built. Visitors can access the original steam engines that once powered the bridge bascules, housed in a building close to the south end of the bridge.

The exhibition charges an admission fee. The entrance is from the west side of the bridge deck to the northern tower, from where visitors ascend to level 4 by lift before crossing the high-level walkways to the southern tower. In the towers and walkways is an exhibition on the history of the bridge. The walkways also provide views over the city, the Tower of London, and the Pool of London, and include a glass-floored section. From the south tower, visitors can visit the engine rooms, with the original steam engines, which are situated in a separate building beside the southern approach to the bridge.

Reaction

Although Tower Bridge is an undoubted landmark, professional commentators in the early 20th century were critical of its aesthetics. "It represents the vice of tawdriness and pretentiousness, and of falsification of the actual facts of the structure", wrote Henry Heathcote Statham, while Frank Brangwyn stated that "A more absurd structure than the Tower Bridge was never thrown across a strategic river".

Benjamin Crisler, the New York Times film critic, wrote in 1938: "Three unique and valuable institutions the British have that we in America have not: Magna Carta, the Tower Bridge, and Alfred Hitchcock." Architectural historian Dan Cruickshank selected Tower Bridge as one of his four choices for the 2002 BBC television documentary series Britain's Best Buildings. The bridge and its surrounding landscape were depicted in an official BBC trailer for the 2021 Rugby League World Cup (in reference to London being one of the host cities).

Tower Bridge has been mistaken for the next bridge upstream, London Bridge. A popular urban legend is that in 1968, Robert P. McCulloch, the purchaser of the old London Bridge that was later shipped to Lake Havasu City in Arizona, believed that he was buying Tower Bridge. This was denied by McCulloch himself and has been debunked by Ivan Luckin, the vendor of the bridge.

A partial replica of Tower Bridge has been built in the city of Suzhou in China. The replica differs from the original in having no lifting mechanism and four separate towers. The Suzhou replica was renovated in 2019, giving it a new look that differs from the original London design.

Incidents

On 10 August 1912, the pioneering stunt pilot Francis McClean flew between the bascules and the high-level walkways in his Short Brothers S.33 floatplane. McClean became a celebrity overnight because of the stunt and went on to fly underneath London Bridge, Blackfriars Bridge, and Waterloo Bridge.

On 3 August 1922, a 13-year-old boy fell off a slipway next to the south side of Tower Bridge. A man jumped into the Thames to save him, but both were pulled under a barge near Butler's Wharf and drowned.

In December 1952, the bridge opened while a number 78 double-decker bus was crossing from the south bank. At that time, the gateman would ring a warning bell and close the gates when the bridge was clear before the watchman ordered the raising of the bridge. The process failed while a relief watchman was on duty. The bus was near the edge of the south bascule when it started to rise; driver Albert Gunter made a split-second decision to accelerate, clearing a 3-foot (1 m) gap to drop 6 feet (2 m) onto the north bascule, which had not yet started to rise. There were no serious injuries. Gunter was given £10 (equivalent to £310 in 2021) by the City Corporation to honour his act of bravery.

On 5 April 1968, a Royal Air Force Hawker Hunter FGA.9 jet fighter from No. 1 Squadron made an unauthorised flight through Tower Bridge. Unimpressed that senior staff was not going to celebrate the RAF's 50th birthday with a flypast, the pilot flew at low altitude down the Thames without authorisation, past the Houses of Parliament, and continued towards the bridge. He flew beneath the walkway, at an estimated 300 miles per hour (500 km/h). He was placed under arrest upon landing, and discharged from the RAF on medical grounds without the chance to defend himself at a court martial.

On 31 July 1973, a single-engined Beagle Pup was twice flown under the pedestrian walkway of Tower Bridge by 29-year-old stockbroker's clerk Peter Martin. Martin, who was on bail following accusations of stock market fraud, then "buzzed" buildings in the city before flying north towards the Lake District, where he died when his aircraft crashed some two hours later.

In May 1997, the motorcade of United States President Bill Clinton was divided by the opening of the bridge. The Thames sailing barge Gladys, on her way to a gathering at St Katharine Docks, arrived on schedule and the bridge was opened for her. Returning from a Thames-side lunch at Le Pont de la Tour restaurant with UK Prime Minister Tony Blair, President Clinton was less punctual and arrived just as the bridge was rising. The bridge opening split the motorcade in two, much to the consternation of security staff. A spokesman for Tower Bridge is quoted as saying: "We tried to contact the American Embassy, but they wouldn't answer the phone."

On 19 August 1999, Jef Smith, a Freeman from the City of London, drove a flock of two sheep across the bridge. He was exercising a claimed ancient permission, granted as a right to freemen, to make a point about the powers of older citizens and the way their rights were being eroded.

Before dawn on 31 October 2003, a Fathers 4 Justice campaigner climbed a 100-foot (30 m) tower crane near Tower Bridge at the start of a six-day protest dressed as Spider-Man. Fearing for his safety, and that of motorists should he fall, police cordoned off the area, closing the bridge and surrounding roads and causing widespread traffic congestion across the City and East London.

On 11 May 2009, six people were trapped and injured after a lift fell 10 feet (3 m) inside the north tower.

On 9 August 2021, the bridge remained open after a technical failure. The bridge had opened to let the Jubilee Trust Tall Ship through from 2 p.m. before getting stuck. The bridge was closed and reopened to traffic approximately 12 hours later.

City Hall, London (Southwark)

City Hall is a building in Southwark, London which previously served as the headquarters of the Greater London Authority (GLA) between July 2002 and December 2021. It is located in the London Borough of Southwark, on the south bank of the River Thames near Tower Bridge. In June 2020, the Greater London Authority started a consultation on proposals to vacate City Hall and move to The Crystal, a GLA-owned property in Newham, at the end of 2021. The decision was confirmed on 3 November 2020 and the GLA vacated City Hall on 2 December 2021. The Southwark location is ultimately owned by the government of Kuwait.

History

City Hall was designed by Norman Foster and was constructed at a cost of £43 million on a site formerly occupied by wharves serving the Pool of London. It opened in July 2002, two years after the Greater London Authority was created, and was leased rather than owned by the Greater London Authority. Despite its name, City Hall is not in and does not serve a city (according to UK law), often adding to the confusion of Greater London with the City of London, which has its headquarters at Guildhall. In June 2011, Mayor Boris Johnson announced that for the duration of the London 2012 Olympic Games, the building would be called the London House.

In November 2020, the Mayor of London Sadiq Khan announced plans to vacate City Hall at the end of 2021 and relocate to The Crystal in the Royal Victoria Docks area of East London. Khan cited the high cost of rent as reasoning for relocating the Greater London Authority headquarters, stating that vacating the City Hall in favour of a property owned by the authority would save it £55 million over the course of five years.

Design

The building has an unusual, bulbous shape, purportedly intended to reduce its surface area and thus improve energy efficiency, although the excess energy consumption caused by the exclusive use of glass (in a double facade) overwhelms the benefit of shape. Despite claiming the building "demonstrates the potential for a sustainable, virtually non-polluting public building", energy use measurements have shown this building to be fairly inefficient in terms of energy use (375 kWh/m2/yr), with a 2012 Display Energy Performance Certificate rating of "E". It has been compared variously to a helmet (either Darth Vader's or simply a motorcyclist's), a misshapen egg, and a woodlouse. Former mayor Ken Livingstone referred to it as a "glass testicle", while his successor, Boris Johnson, made the same comparison using a different word, "The Glass Gonad" and more politely as "The Onion".

A 500-meter (1,640 ft) helical walkway ascends the full ten storeys. At the top is an exhibition and meeting space with an open viewing deck that was occasionally open to the public. The walkway provides views of the interior of the building, and is intended to symbolise transparency; a similar device was used by Foster in his design for the rebuilt Reichstag (parliament) when Germany's capital was moved back to Berlin. In 2006 it was announced that photovoltaic cells would be fitted to the building by the London Climate Change Agency.

The debating chamber was located at the bottom of the helical stairway. The seats and desks for Assembly Members were arranged in a circular form.

Location

The building is located on the River Thames in the London Borough of Southwark, as part of the extended pedestrianised South Bank. It forms part of a larger development called More London, including offices and shops. The nearest London Underground and National Rail station is London Bridge.

The Shard

The Shard, also referred to as the Shard London Bridge and formerly London Bridge Tower, is a 72-storey skyscraper, designed by the Italian architect Renzo Piano, in Southwark, London, that forms part of The Shard Quarter development. Standing 309.6 meters (1,016 feet) high, The Shard is the tallest building in the United Kingdom, and the seventh-tallest building in Europe. It is also the second-tallest free-standing structure in the United Kingdom, after the concrete tower of the Emley Moor transmitting station. It replaced Southwark Towers, a 24-storey office block built on the site in 1975.

The Shard's construction began in March 2009; it was topped out on 30 March 2012 and inaugurated on 5 July 2012. Practical completion was achieved in November 2012. The tower's privately operated observation deck, The View from The Shard, was opened to the public on 1 February 2013. The glass-clad pyramidal tower has 72 habitable floors, with a viewing gallery and open-air observation deck on the 72nd floor, at a height of 244 meters (801 ft). The Shard was developed by Sellar Property Group on behalf of LBQ Ltd and is jointly owned by Sellar Property (5%) and the State of Qatar (95%).

Background

Planning

In 1998, London-based entrepreneur Irvine Sellar and his partners decided to redevelop the 1970s-era Southwark Towers following a UK government white paper encouraging the development of tall buildings at major transport hubs. Sellar flew to Berlin in the spring of 2000 to meet the Italian architect Renzo Piano for lunch. According to Sellar, Piano spoke of his contempt for conventional tall buildings during the meal, before flipping over the restaurant's menu and sketching a spire-like sculpture emerging from the River Thames.

In July 2002, the Deputy Prime Minister, John Prescott, ordered a planning inquiry after the development plans for the Shard were opposed by the Commission for Architecture and the Built Environment and several heritage bodies, including the Royal Parks Foundation and English Heritage. The inquiry took place in April and May 2003, and on 19 November 2003, the Office of the Deputy Prime Minister announced that planning consent had been approved. The government stated that:

Mr. Prescott would only approve skyscrapers of exceptional design. For a building of this size to be acceptable, the quality of its design is critical. He is satisfied that the proposed tower is of the highest architectural quality.

Sellar and his original partners CLS Holdings plc and CN Ltd (acting for the Halabi Family Trust) secured an interim funding package of £196 million in September 2006 from the Nationwide Building Society and Kaupthing Singer & Friedlander. This enabled them to pay off the costs already incurred and to buy out the Southwark Towers occupational lease from the building's tenants, PricewaterhouseCoopers. Vacant possession of the site was secured a year later after PricewaterhouseCoopers completed the relocation of their operations.

In September 2007, preparations for the demolition of Southwark Towers began. However, later that same month, turbulence in the financial markets reportedly put the Shard's construction in jeopardy, threatening to render the project an example of the Skyscraper Index.

In November 2007, building contractor Mace was awarded the contract to build the Shard for a fixed price of no more than £350 million. However, this price increased to almost £435 million in October 2008.

In April 2008, the demolition of Southwark Towers was visibly underway, and by October, the building had been substantially reduced in height and was no longer visible on the skyline. The demolition was completed in early 2009, and site preparation began for the construction of the Shard.

Funding

Towards the end of 2007, the gathering uncertainty in the global financial markets sparked concerns about the viability of the Shard. However, in January 2008, Sellar announced that it had secured funding from a consortium of Qatari investors, who had paid £150 million to secure an 80% stake in the project. The consortium included Qatar National Bank, QInvest, Qatari Islamic Bank, and the Qatari property developer Barwa Real Estate, as well as Sellar Property. The deal involved a buyout of the Halabi and CLS Holdings stakes and part of the Sellar Property stake. The new owners promised to provide the first tranche of finance, allowing construction of the tower to begin. In 2009, the State of Qatar consolidated its ownership of the London Bridge Quarter (known now as Shard Quarter), including The Shard, through the purchase of private Qatari investors' stakes. Shard Quarter is today jointly owned by the State of Qatar and Sellar.

Architecture

Renzo Piano, the project's architect, designed The Shard as a spire-like sculpture emerging from the River Thames. He was inspired by the railway lines next to the site, the London spires depicted by the 18th-century Venetian painter Canaletto, and the masts of sailing ships. Piano's design met criticism from English Heritage, who claimed the building would be "a shard of glass through the heart of historic London", giving the building its name, The Shard. Piano considered the slender, spire-like form of the tower a positive addition to the London skyline, recalling the church steeples featured in historic engravings of the city, and believed that its presence would be far more delicate than opponents of the project alleged. He proposed a sophisticated use of glazing, with expressive façades of angled glass panes intended to reflect sunlight and the sky above, so that the appearance of the building will change according to the weather and seasons. The building features 11,000 panes of glass, with a total surface area of 602,779 square feet (56,000.0 m2) equivalent to the area of almost eight Wembley football pitches.

The Shard was designed with energy efficiency in mind. It is fitted with a combined heat and power (CHP) plant, operating on natural gas from the National Grid. Fuel is efficiently converted to electricity, and heat is recovered from the engine to provide hot water for the building.

Following the destruction of New York's World Trade Center (WTC) in the terror attacks of 11 September 2001, architects and structural engineers worldwide began re-evaluating the design of tall structures. The Shard's early conceptual designs were among the first in the UK to be amended following the publication of the US National Institute of Standards and Technology (NIST) report into the collapse of the WTC. The building is designed to maintain its stability under very onerous conditions, with its post-tensioned concrete and composite floors, load-bearing pillars, and tapering shape giving it a sway tolerance of 400 millimeters (16 in).

In 2014, The Shard claimed first place at the Emporis Skyscraper Awards, recognising buildings over 100 m (328 ft) completed in the previous twelve months. The Emporis judges hailed the building as "a skyscraper that is recognized immediately and which is already considered London's new emblem".

Construction

For the construction of the skyscraper, some path-breaking engineering methods were used, such as top-down construction, where foundations are dug while the core is built up — this was a first for the UK. In February 2009, a mobile crane and a small piling rig arrived on site. In early March 2009, the crane began putting steel beams into the ground, as part of preparations for the core of the building. Full construction began on 16 March 2009. Demolition work on New London Bridge House started in May 2009, as part of the concurrent London Bridge Place project. The first steelwork went into The Shard's piles on 28 April. Five cranes were used to build The Shard, with four of them 'jumping' with the tower as it rose. Crane 1 was erected in September 2009 and Crane 2 was erected at the beginning of October. By 20 October 2009, steel beams began appearing on site, with concrete being poured at the northern part of the site, ready for Crane 3.

By March 2010, the concrete core was rising steadily at about 3 m (10 ft) a day. After a pause in March–April 2010, it continued rising, reaching the 33rd floor in mid-June, almost level with the top of Guy's Hospital, which stands at 143 m (469 ft). On 27 July 2010, the core stopped rising, having reached the 38th floor, and was reconfigured for further construction. By mid-November 2010, the core had reached the 68th floor, with the tower's steel reaching the 40th floor and glass cladding enveloping a third of the building. In late November, the core's height exceeded 235 m (771 ft), ending One Canada Square's 18-year reign as Britain's tallest building.

The Shard's concrete core topped out on the 72nd floor in early 2011, standing at 244 m (801 ft). The early part of January 2011 saw the installation of hydraulic screens, which were used to form the concrete floors of the hotel and apartment section of the tower, and rose with the floors up to the 69th floor. On 25 January 2011, the concrete pumps began pouring the first concrete floor on the 41st floor. By the end of February 2011, concrete flooring had risen to the 46th floor, with a new floor being poured on average every week. The cladding of the structure also progressed, mainly on the tower's "backpack". During this phase of construction, a fox was discovered living at the top of the unfinished skyscraper. The fox, named Romeo by staff, is thought to have entered the building through the central stairwell. It survived by eating scraps of food left by builders working on the incomplete structure. The fox was captured and taken to Riverside Animal Centre in Wallington.

August 2011 saw steady progress in construction, with cladding enveloping more than half the building's exterior. The pouring of the concrete floors reached the 67th floor, and the progression of the tower's cladding reached the 58th floor. By mid-August, the core box had been removed. By 19 September 2011, the tower's steel was approaching the height of the completed core, reaching almost 244 m (801 ft). On 24 September, a final crane — at the time, the tallest ever built in Britain — was erected to install the skyscraper's upper spire. The spire was pre-fabricated and pre-assembled based on 3D models and underwent a "test run" in Yorkshire before being lifted onto the building itself. By late December 2011, the Shard had become the tallest building in the European Union, superseding the Commerzbank Tower in Frankfurt, Germany.

The Shard's steel structure was topped out on 30 March 2012, when its 66-meter (217 ft), 500-tonne spire was winched into place. The steel structure thus reached a height of 308.7 m (1,013 ft). The final 516 panes of glass were added shortly after, topping the tower out at its full height of 309.6 m (1,016 ft).

The Shard was inaugurated on 5 July 2012 by the Prime Minister of Qatar, Hamad bin Jassim bin Jaber Al Thani, in a ceremony attended by Prince Andrew, Duke of York. Practical completion of the building was achieved in November 2012.

Height

Standing 309.6 meters (1,016 ft) at its highest point, and 308.5 meters (1,012 ft) at the highest point of its steelwork, The Shard became the tallest building in the European Union in December 2011, and the tallest completed building in Europe on 30 March 2012. It is taller than Frankfurt's Commerzbank Tower at 259 m (850 ft) the record holder between 1997 and 2005 and three later skyscrapers of Moscow: the Triumph-Palace, Naberezhnaya Tower, and City of Capitals. These three had each held the title for roughly 2+1⁄2 years. The Shard was overtaken by a fourth such tower in November 2012: the 339-meter (1,112 ft) Mercury City Tower. The Shard was surpassed as the tallest European building outside Russia by the 310-meter (1,017 ft) Varso Tower, Warsaw, Poland in February 2021.

The Shard is the second-tallest free-standing structure in the United Kingdom, after the 330-meter (1,083 ft) concrete transmission tower at Emley Moor. Another planned London skyscraper, the Pinnacle (now replaced by 22 Bishopsgate), was originally proposed to rival the height of The Shard but was reduced to a height of 287.9 meters (945 ft) because of concerns from the Civil Aviation Authority. It is taller than all of the natural peaks in London and in adjoining counties, the highest of which is Walbury Hill, close to Wiltshire.

Tenants

The Shard comprises a 26-floor office complex, occupied by 32 companies across 10 business sectors, 3 restaurants — Aqua Shard, Oblix, and Hutong — the five-star Shangri-La The Shard, London hotel, 10 residential apartments, and the UK's highest viewing gallery, The View from The Shard.

In February 2013, The Sunday Times reported that the developers of The Shard were in negotiations to secure the first tenants of the building's 26 floors of office space. At the time, potential tenants included financial restructuring specialists Duff & Phelps, private equity firm Hatton Corporation, and the South Hook Liquefied Natural Gas Company.

The Shard's fourth, fifth, and sixth floors host the HCA (Hospital Corporations of America), part of London Bridge Hospital. The Shard's 31st, 32nd, and 33rd floors host three restaurants: Oblix, Hutong, and Aqua Shard. The building's Shangri-La Hotel occupies floors 34–52. The hotel was initially expected to open by the end of 2013, but its opening was ultimately delayed to 6 May 2014. In March 2014, Mathys & Squire became the first law firm to take tenancy in the building. In May 2014, the Foresight Group, an investment firm, moved its head UK office into The Shard on the 17th floor. In June 2015, Warwick Business School opened its new base in The Shard, occupying the same floor, and was officially opened by the mayor of London, Boris Johnson. It houses a 100-seat lecture theatre and a smaller one at 60 seats, plus 8 seminar rooms and an IT lab, offering postgraduate and executive education.

In July 2013, the Qatari broadcaster Al Jazeera Media Network announced that it would open a new television studio and newsroom for Al Jazeera English in The Shard. Al Jazeera moved in on 13 September 2014; its first live broadcast from the building was on 10 November 2014. The facility currently houses all primary operations for Al Jazeera Media Network's channels in London; it is capable of running an entire channel independent from Al Jazeera's other hubs and is the network's second-biggest hub after its facility in Doha, Qatar.

In January 2015, further tenants for The Shard were announced, including IO Oil & Gas Consulting, Gallup, and The Office Group. In May 2015, the American recruitment consultancy Robert Half International announced that it would move several branches of its business into The Shard, having purchased 20,000 square feet (1,900 m2) of floor space on the tower's tenth floor. In August 2015, the international law firm Greenberg Traurig announced that it would open its offices on the eighth floor of The Shard by the end of the year.

Matches Fashion took over 35,000 sq ft in January 2016, and six months later expanded its headquarters presence in The Shard by 40%. In March 2016, marketing agency Jellyfish signed a lease for 9,017 square feet (837.7 m2) of office space on the 22nd floor, with occupancy beginning later in the year. A month later, publishing house Dods Group let almost 17,000 square feet (1,600 m2) on Level 11, becoming The Shard's 28th office occupier. In December, Kraft Heinz relocated their European and UK headquarters from Hayes in Hillingdon to The Shard after taking 38,000 square feet (3,500 m2) on Levels 20 & 21.

The Shard offices were announced as fully let in October 2017, following lettings to Mitie and existing occupiers, Foresight Group, and Warwick Business School.

Urban exploration, BASE jumping, and climbing

In December 2011, a group of recreational explorers calling themselves the Place Hackers evaded security and made their way to the top of the Shard building site, climbing one of the tallest cranes in the process. They later posted photographs of the London skyline taken from the top of the Shard on the Internet and received wide media attention. One member of the group, Oxford University researcher Bradley Garrett, later revealed to various news outlets that over 20 urban explorers had made their way to the top of the building during its construction. In a 2012 article for Domus magazine, Garrett wrote that "the conceptual barrier to places in our cities is brought about by a process of engineered exclusion" and that the explorers were "cultivating the creative city that money can't buy".

BASE jumpers reportedly jumped from The Shard more than a dozen times between 2009 and 2012. Four jumps were reportedly made by Essex roofer Dan Witchalls, who had filmed one attempt with a helmet-mounted camera. The highest jump was said to have been from a height of 260 meters (850 ft). In March 2016 another person BASE jumped from The Shard.

On 3 September 2012, a team of 40 people, including Prince Andrew, Duke of York, abseiled from the tower's 87th floor. This feat was performed to raise money for the Outward Bound Trust and the Royal Marines Charitable Trust Fund. In November 2012, the French urban climber Alain Robert was spotted in the building by security guards. At the end of the month, the Shard's owners won an injunction to prevent him from entering or climbing the building.

On 11 July 2013, six female Greenpeace volunteers climbed the Shard and unfurled a flag in protest against Arctic oil drilling by Royal Dutch Shell. The women announced they were "experienced climbers", but medical personnel was summoned to the base of the tower nonetheless. The Shard's staff closed the tower's observatory and gave the women a safety briefing and other advice during their climb. After completing their 16-hour climb, the six women were arrested by police on suspicion of aggravated trespass.

In popular culture

• The Shard appears in the 2012 short film The Snowman and The Snowdog and its tie-in computer game.
• The Shard has a significant role in the 2013 Doctor Who episode "The Bells of Saint John" as the headquarters of the episode's antagonist, the Great Intelligence. The Doctor vertically rode an anti-gravity motorbike on the face of the building and through a window to reach the Great Intelligence's headquarters.
• The Shard appears in the climactic scene of the 2019 film Spider-Man: Far From Home. It is Nick Fury/Talos's & Maria Hill/Soren's lookout while the final battle takes place between Spider-Man and Mysterio on Tower Bridge.
• In Pokémon Sword and Shield, the Pokémon Duraludon and its Gigantamax form is based on the Shard.
• It is featured in the Mario Kart games Mario Kart Tour and Mario Kart 8 Deluxe as part of the London Loop racecourse.
• The Shard appears in the 2020 video game Watch Dogs: Legion referred to chiefly as 'Nexus Tower'.
• The Shard features prominently in the 2022 music video for the Machine Gun Kelly song "Maybe".

More London

More London, part of an area known as London Bridge City, is a development on the south bank of the River Thames, immediately southwest of Tower Bridge in London. It is owned by the Kuwaiti sovereign wealth fund.

It includes the City Hall, a sunken amphitheater called The Scoop, office blocks, shops, restaurants, cafes, and a pedestrianized area containing open-air sculptures and fountains lit by coloured lights. The Hilton London Tower Bridge Hotel opened in September 2006.

More London is 13 acres (53,000 m2) in size and has planning consent for 3,000,000 square feet (280,000 m2) of mixed-use space, of which up to two million square feet will be offices, accommodating up to 20,000 people. The buildings were designed by Foster and Partners architects. The buildings are known as 1 & 6 More London Place, and 2, 3, 4, and 7 More London Riverside. The public area, which includes The Scoop, a fountain, and planting areas, was designed by Townshend Landscape Architects.

More London has frequent outdoor exhibitions and cultural events. For most of 2005, there was a popular open-air exhibition of large environmental photographs called Earth from the Air.

In 2007, the development was shortlisted for the Carbuncle Cup Architecture prize, an annual competition by Building Design for "the ugliest building in the United Kingdom completed in the last 12 months."

"The Rill", a brick water channel that ran along one walkway of the area, was filled in in 2018.
